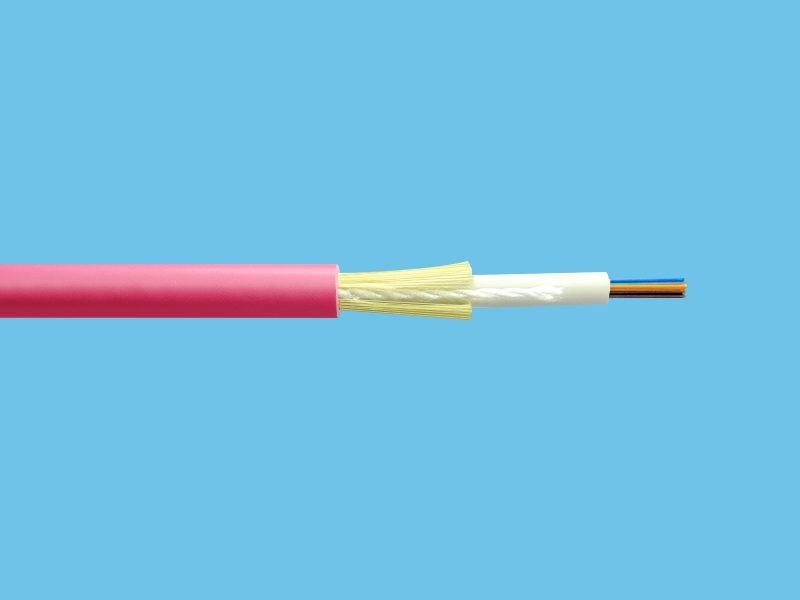

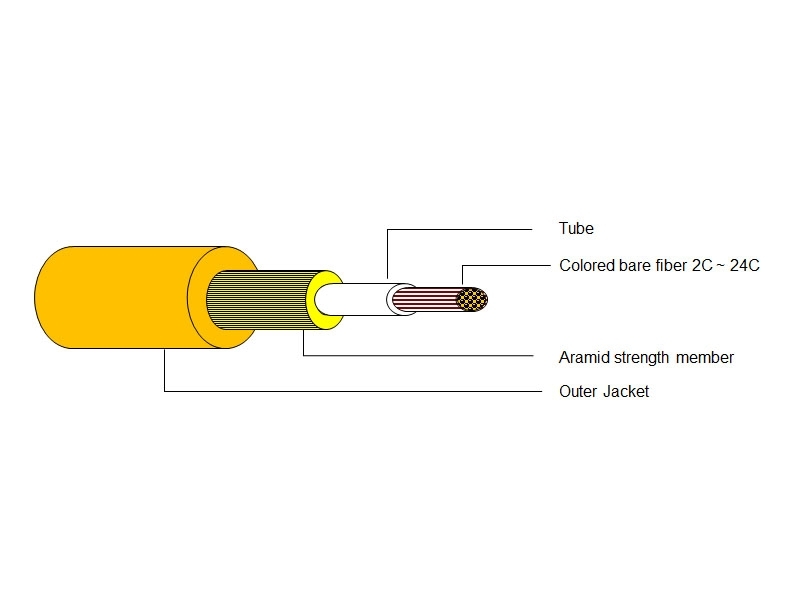

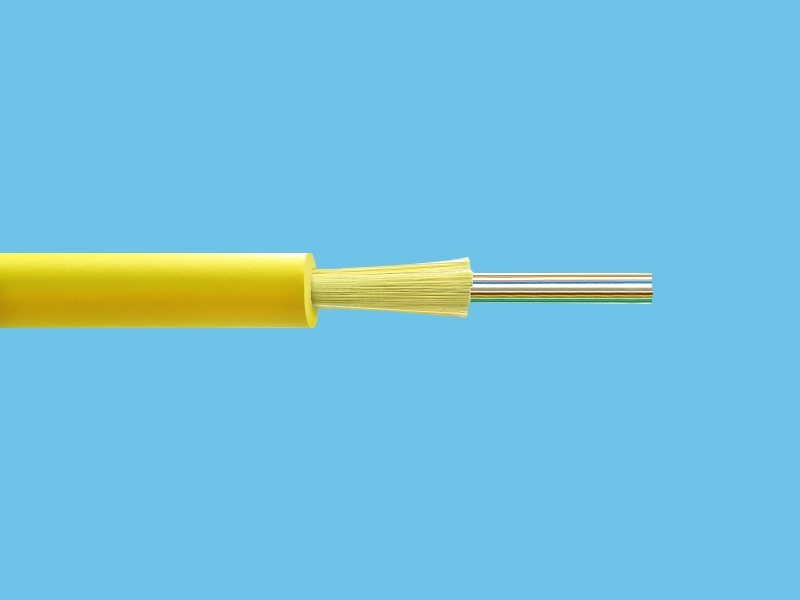

| Micro Distribution Indoor Cable
Application
| ● It can be directly assembled with connectors as pigtail or patch cord. | ||||||||
| ● The link between the communication device and instrument. | ||||||||
| ● As building to building connecting cables. As indoor soft cable along the walls and ceiling and between layers and in ducts. | ||||||||
Features
| ● All of sheath materials are RoHS compliance : PVC，LSZH ( Low Smoke Zero Halogen )，Hytrel，OFNP etc. | |||||||||
| Both OFNP and OFNR meet UL flame retardant specification. | |||||||||
|
● Smaller outer diameter and light-weighted. Easy to be deployed. It can effectively overcome the difficulties of the old pipeline construction. |
|||||||||
| ● Easy and quickly to identify for using colored optical fiber. | |||||||||
| ● Storage, installation, operationg temperature : -20℃ ~ +70 ℃ | |||||||||
Specification
| Fiber Count | Outer Diameter ( mm ) | Weight ( g/m ) | Mini Bending Radius (mm) | Max. Tensile Strength (N) | |
|---|---|---|---|---|---|
| Load | Unload | Short term | |||
| 2 - 24 | ≦ 3.8 | ≦20 | ≦ 57 | ≦ 30 | ≦ 500 |
